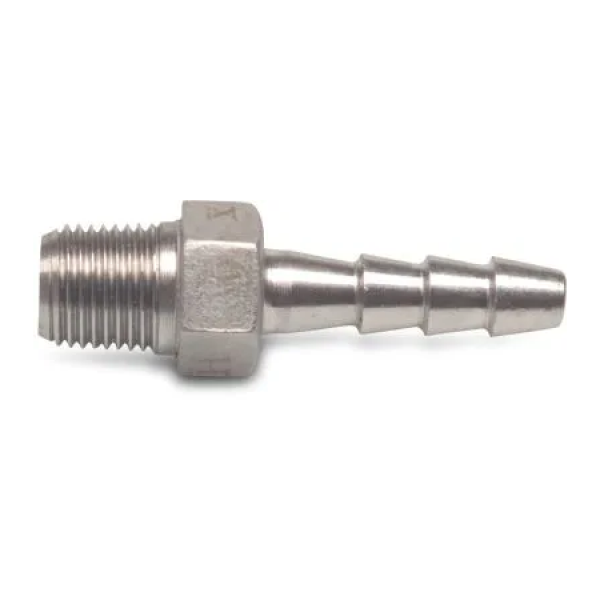

Schlauchtülle mit Sechskant, Edelstahl 316, Außengwinde x Schlauchtülle 3/8" x 13 mm
Druckbereich
| -20°C bis 40°C | 20 bar |
| 100°C | 16,5 bar |
| 150°C | 15 bar |
| 220°C | 13,5 bar |
| Anschluss: | Außengewinde x Schlauchtülle |
|---|---|
| Arbeitsdruck: | PN20 / 20 Bar |
| Temperaturbereich: | -20°C bis +200°C |
| Werkstoff: | Edelstahl 316 |
|
080X.XX |
Maße | Artikel-Nr. | |||
|
|
1/8" |
x |
6 mm |
0803.00 |
|
|
|
1/8" |
x |
7 mm |
0809.11 |
|
|
1/4" |
x |
7 mm |
0809.12 |
||
|
1/4" |
x |
8 mm |
0803.01 |
||
|
1/4" |
x |
9 mm |
0802.99 |
||
|
3/8" |
x |
9 mm |
0809.14 |
||
| 3/8" |
x |
10 mm | 0803.02 | ||
| 3/8" |
x |
11 mm | 0809.15 | ||
| 3/8" |
x |
13 mm | 0809.16 | ||
| 3/8" |
x |
16 mm | 0809.17 | ||
| 1/2" | x |
9 mm | 0809.18 | ||
| 1/2" | x |
13 mm | 0803.03 | ||
| 1/2" | x |
15 mm | 0809.19 | ||
|
|
1/2" | x |
20 mm | 0809.20 | |
|
|
3/4" |
x |
16 mm |
0809.21 |
|
| 3/4" | x |
19 mm | 0803.04 | ||
| 1" | x |
26 mm | 0803.05 | ||
| 1" | x |
27 mm | 0809.22 | ||
| 1.1/4" | x |
33 mm | 0803.06 | ||
| 1.1/2" | x |
40 mm | 0803.07 | ||
| 1.1/2" | x |
46 mm | 0809.23 | ||
| 2" | x |
52 mm | 0803.08 | ||
| 2" | x |
57 mm | 0809.24 | ||
| 2.1/2" | x |
63 mm | 0803.64 | ||
| 3" | x |
75 mm | 0803.65 | ||
| 4" | x |
100 mm | 0803.66 | ||
